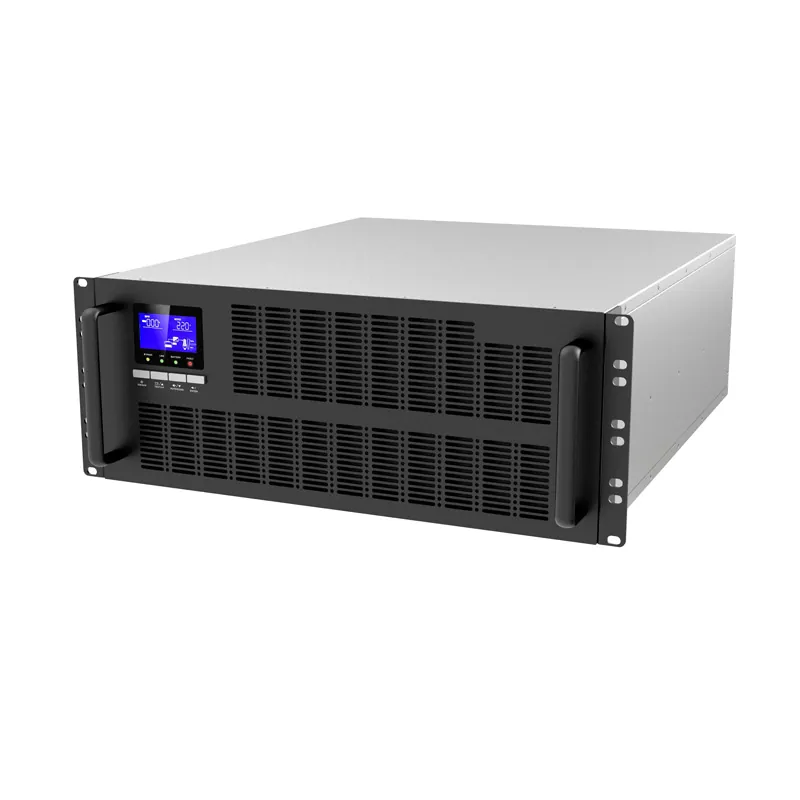

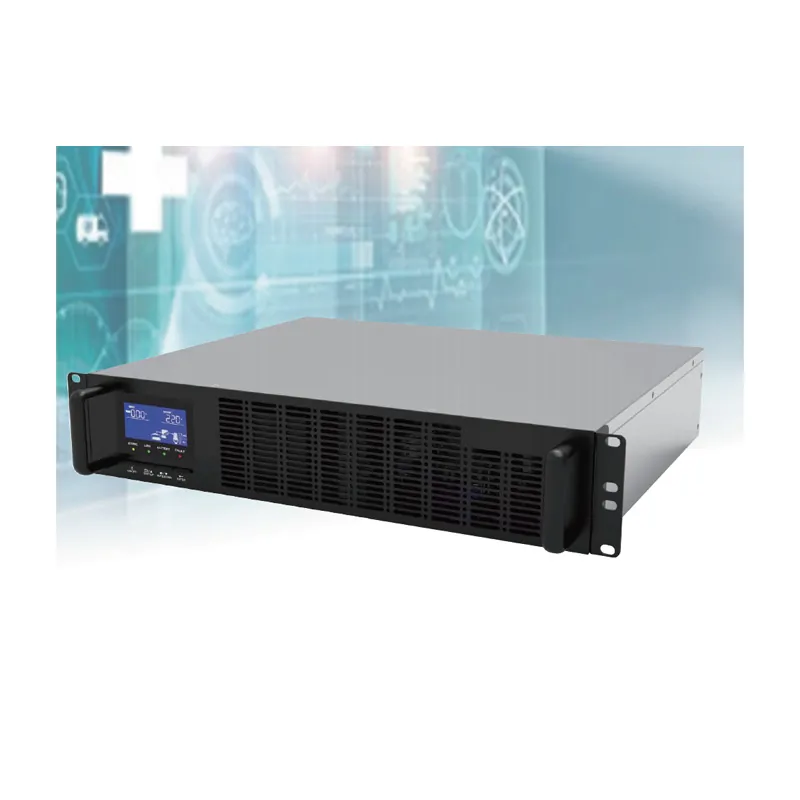

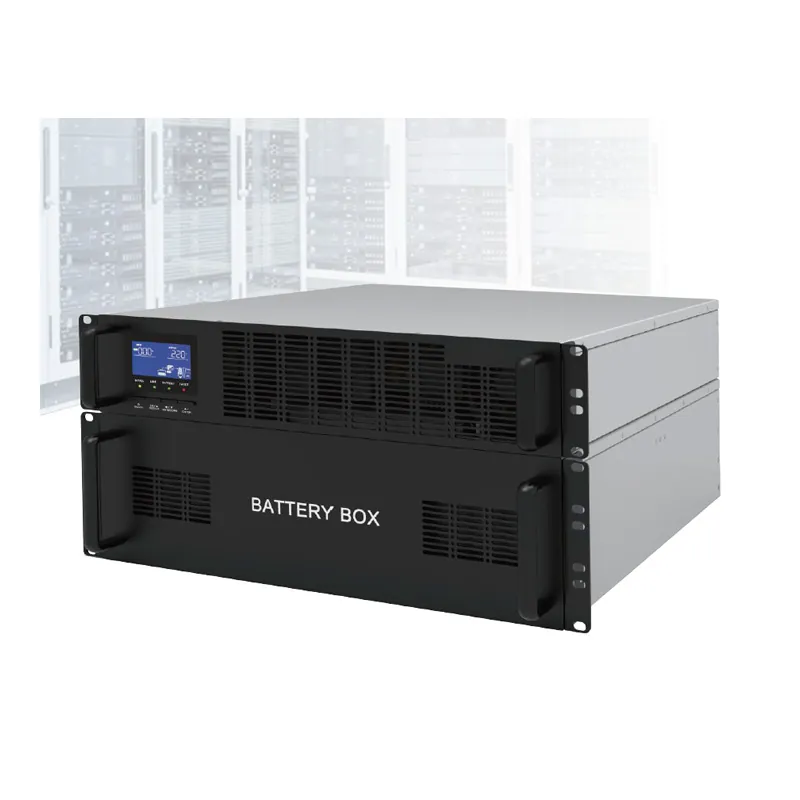

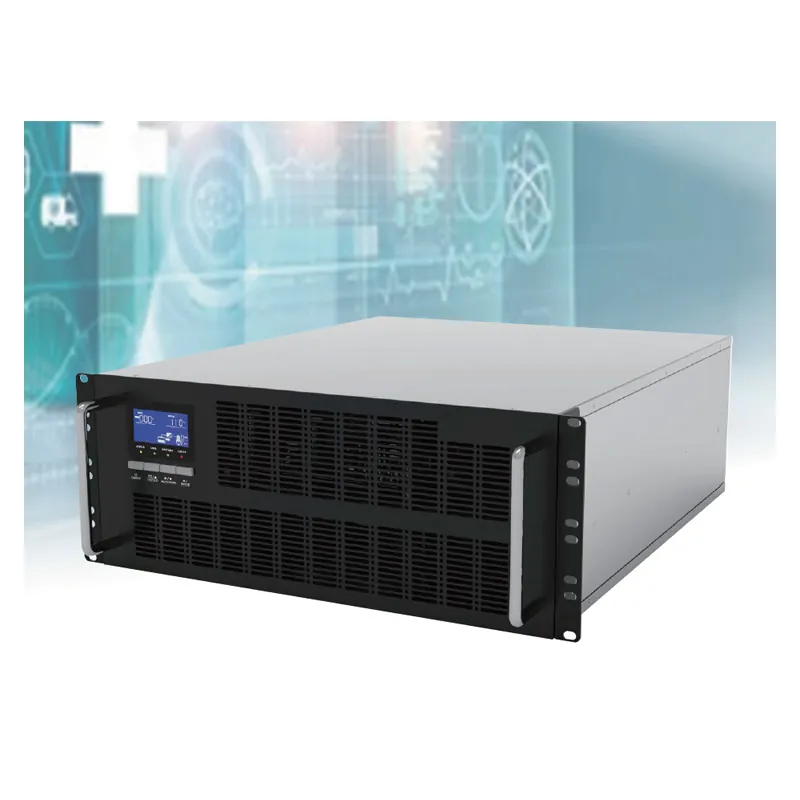

rack 110v 220v 1~10kva online rack mount ups pf:0.9 for networking room

Rack 110V 220V 1~10KVA Online Rack Mount UPS PF:0.9 for Networking Room

Short Description：

Place of origin: China
Type: online UPS
Model Number: BT900-RT 1~30KVA
Display: LED
Phase: Single/Three Phase
Waveform: pure sine wave
Transfer time: 0ms
Capacity: 1KVA -30KVA
Protection: short-circuit, over voltages, reverse connection protection
OEM/ODM: Yes
Supply Ability: 10000 Piece/Pieces per Month
Packaging: Carton box package or as you requested

Product Category： Rack Mount UPS

PRODUCT DETAILS

Features：

DSP (Digital signal processors) control
Active input power factor correction, input power factor>0.99
Three level inverter technology, lower harmonic, higher efficiency
Wide input voltage range 90V~300V and frequency range 40~70Hz
Generator compatible
Cold start function
Remote on off (ROO) function (optional)
Economic operation mode (ECO)
50Hz / 60Hz Frequency auto sensing
Frequency converter mode: 50Hz input / 60Hz output or 60Hz input / 50Hz output
Laser printer and ultrasound system load acceptable (customized)
Can work with 1phase or 3phases mains input, without complex setting or power derating
Communications:RS232(standard), USB / MODBUS / RS485 / SNMP / AS400 card (optional)
Reliable design, made with strong glass fiber base (FR4) double side PCB, well designed ventilation and conformal coating

Technical Parameters

Technical Parameters
MODEL		BT9010S(H)-R-31	BT9015S(H)-R-31	BT9020S(H)-R-31
PHASE		3-phase in / 1-phase out
CAPACITY		10000 VA/9000 W	15000 VA/13500 W	20000 VA / 18000 W
INPUT
Nominal Voltage		3 x 400 VAC (3Ph+N)
Voltage Range		190-520 VAC (3-phase) at 50% load; 305-478 VAC (3-phase) at 100% load
Frequency Range		46~54 Hz or 56~64Hz
Power Factor		≥ 0.99 @ 100% Load
THDi		< 6% @ 100% Load
OUTPUT
Output Voltage		208/220/230/240VAC
AC Voltage Regulation (Batt. Mode)		± 1%
Frequency Range (Synchronized Range)		46~54Hz or 56~64Hz
Frequency Range (Batt. Mode)		50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio		3:01
Harmonic Distortion		≤ 2 % THD (Linear Load); ≤ 5 % THD (Non-linear Load)
Transfer	AC Mode to Batt. Mode	Zero
Time	Inverter to Bypass	Zero
Waveform (Batt. Mode)		Pure Sinewave
EFFICIENCY
AC Mode		90.50%	91%
ECO Mode		96%	96%
Battery Mode		87%	88%
BATTERY
	Battery Type	12 V / 9 Ah
Standard Model	Numbers	20 (18 – 20 pcs* adjustable)	20 pcs x 2 strings (18 – 20 pcs* adjustable)
	Typical Recharge Time	9 hours recover to 90% capacity
	Charging Current (max.)	1A	2A
	Charging Voltage	273 VDC ± 1% (based on battery numbers at 20 pcs)
Long-run Model	Battery Type	Depending on the capacity of external batteries
	Numbers
	Charging Current (max.)	4A
	Charging Voltage	273 VDC ± 1% (based on battery numbers at 20 pcs)
INDICATORS
LCD Display		UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
ALARM
Battery Mode		Sounding every 4 seconds
Low Battery		Sounding every second
Overload		Sounding twice every second
Fault		Continously sounding
PHYSICAL

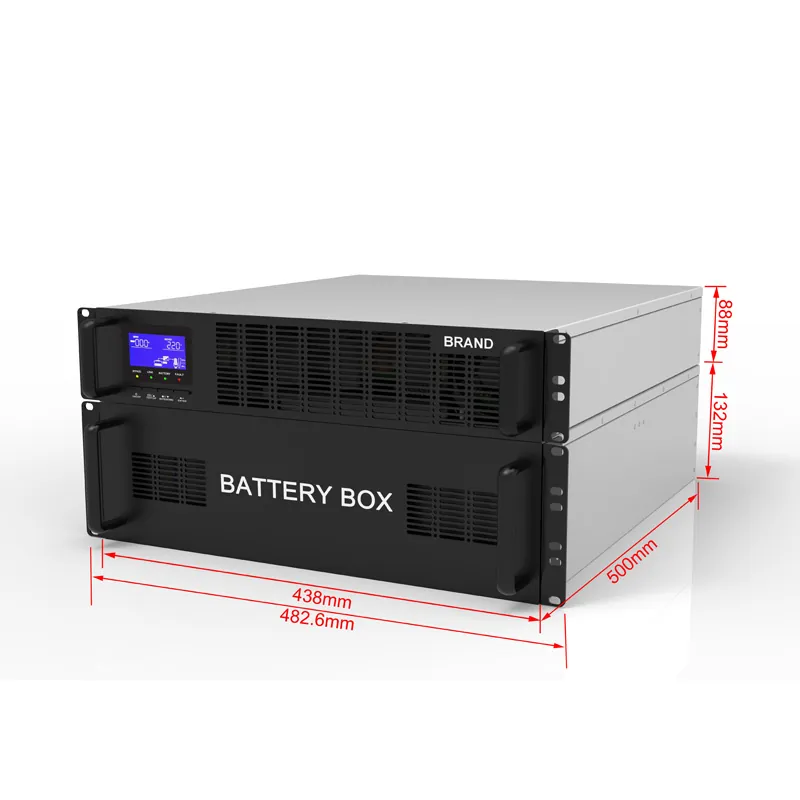

Standard Model	Dimension, D x W x H (mm)	UPS unit:668 x 438 x 133 [3U]	UPS unit:668 x 438 x 266 [6U]
		Battery pack: 580 x 438 x 133 [3U]	Battery pack: 580 x 438 x 133 [3U] x 2PCS
	Net Weight (kg)	UPS unit: 22	UPS unit: 45
		Battery pack: 63	Battery pack: 63 x 2 pcs
Long-run Model	Dimension, D x W x H (mm)	668 x 438 x 133 [3U]	668 x 438 x 266 [6U]
	Net Weight (kg)	22	45
ENVIRONMENT
Operating Humidity		0-95 % RH @ 0- 40°C (Non-condensing)
Noise Level		Less than 60dB @ 1 Meter	Less than 65dB @ 1 Meter
MANAGEMENT
Smart RS-232 / USB		Supports Windows2 2000/2003/XP/Vista/2008, Windows2 7/8/10, Linux and MAC
Optional SNMP		Power management from SNMP manager and web browser
