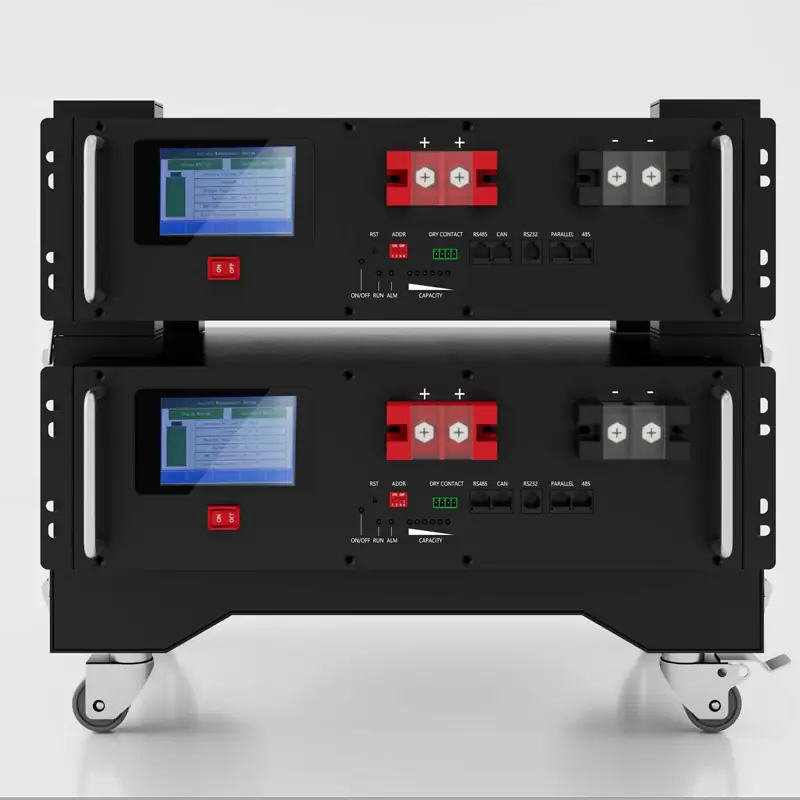

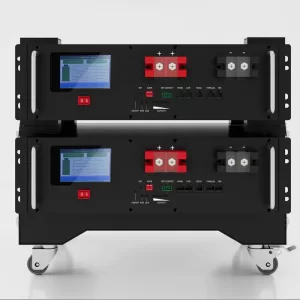

Rack-mount Lithium Battery 25.6v 3.8kwh Household Solar Energy Storage Battery Rack Type Energy PV Storage Battery

Short Description:

Brand: Banatton
Place of origin: China
Voltage range: 25.6V 51.2V
Sealed Type: Li-Ion/lithium
Battery type: LiFePO4
Battery Size:18650
Capacity range: 50AH 100AH 200AH 280AH 300AH
OEM/ODM: Yes

Product Category:

PRODUCT DETAILS

Product details
Our Rack-Mount lithium battery is built with top-tier Grade A cells, ensuring an extended cycle life and consistent performance. Equipped with an advanced Battery Management System (BMS), it elevates system efficiency, extends battery life, and prioritizes safety. Designed for telecom equipment backup power and household energy storage systems, it offers outstanding safety, high energy density, long life, excellent temperature performance, and eco-friendly power generation. With the added convenience of an LCD display, users can effortlessly check battery status at any time. Additionally, the battery offers seamless information monitoring via its exceptional RS232/485 communication function when connected to a computer Choose it for reliable and advanced energy solutions.

Features

1.Longer Cycle Life: Offers up to 15 times longer cycle life and 5 times longer float/calendar life than lead acid battery.
2. Lighter Weight: About 40% weight of a comparable lead acid battery, save up to 60% in weight.
3. Quick Charge: Short charge time compared with lead acid battery.
4. Low Self-Discharge: Lower self-discharge compared with lead acid battery longer storage time without recharging.
5. Superior Safety: Multi-protection methods built inside to protect the battery from overcharge, over discharge and short circuit situation.
6. High Efficient: Higher round-trip energy efficiency of the average (92%) than lead acid battery 80% (discharge from 100% to 0% and back to 100%charged).

Product Specifications

Model 25.6V100AH 25.6V200AH 51.2V100AH 51.V200AH 51.2V280AH
Nominal Voltage 25.6V 25.6V 51.2V 51.2V 51.2V
Rated Capacity 100Ah 200Ah 100Ah 200Ah 280Ah
Discharge Current 100A 100A 100A 200A 200A
Peak Discharge Current(30S) 300A 300A 300A 300A 300A
Cut off Discharge
Voltage
22.4V 22.4V 44.8V 44.8V 44.8V
Charge Voltage 29.2V 29.2V 58.4V 58.4V 58.4V
Charge Current 20A 40A 20A 40A 50A
Weight (KG) 26.90 46.30 46.00 85.00 115.00
Dimension
(LxWxH))mm
442x420x133 442x420x133 442x420x133 442x420x311 442x650x222
Height 3U 3U 3U 7U 5U

Application
Date Center, Electric Power Systems, Solar & Wind Energy Storage, Base Stations Telecommunications, UPS, All-purpose.
