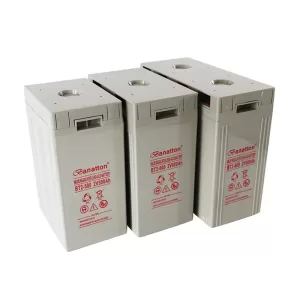

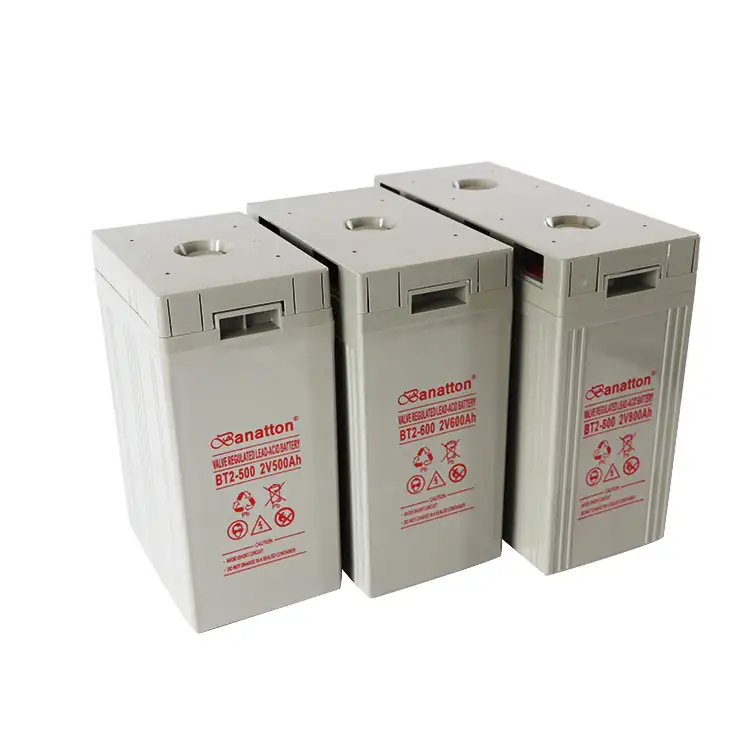

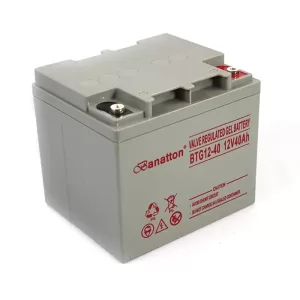

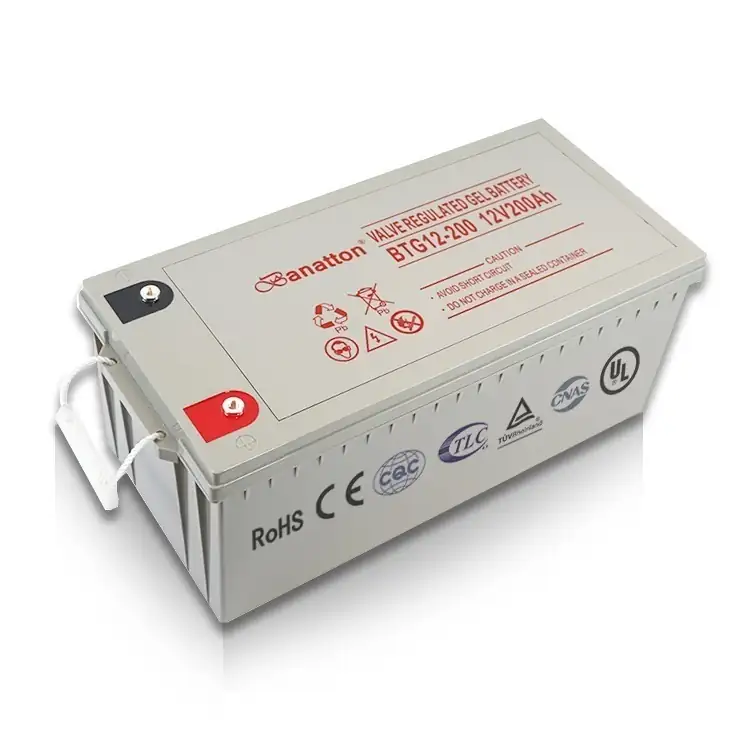

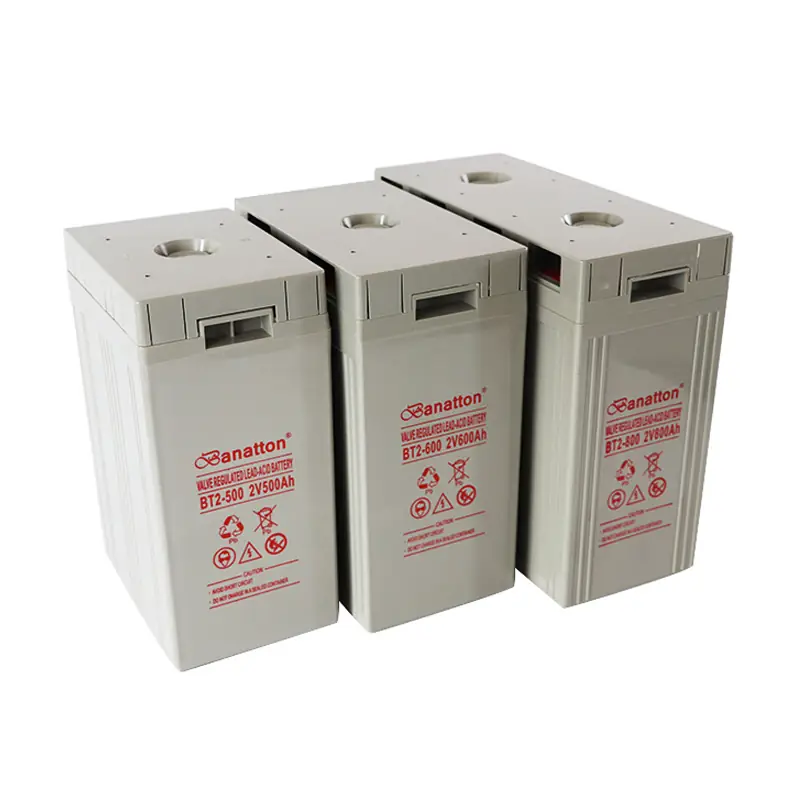

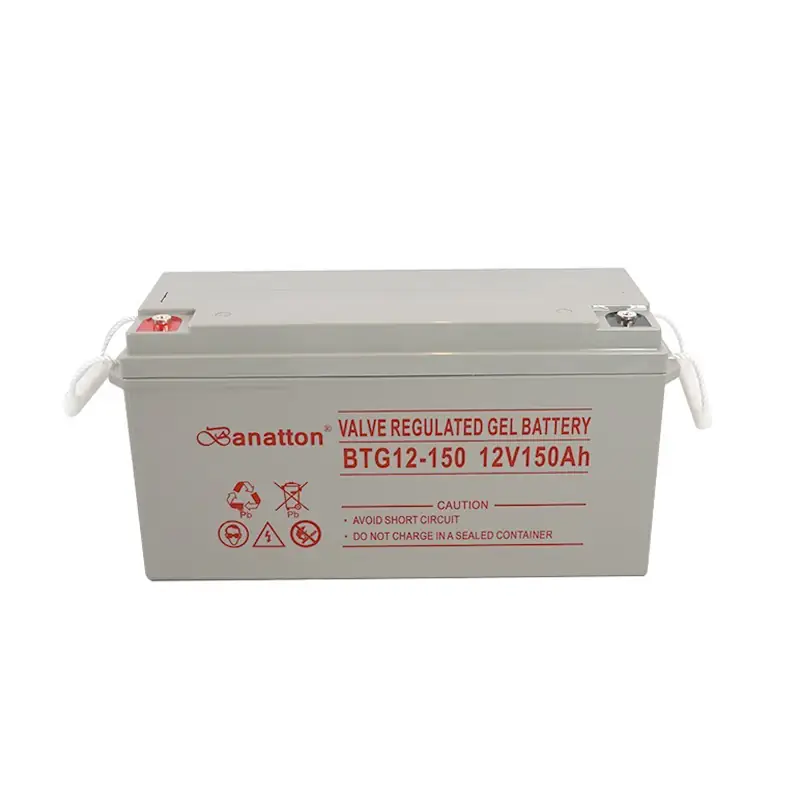

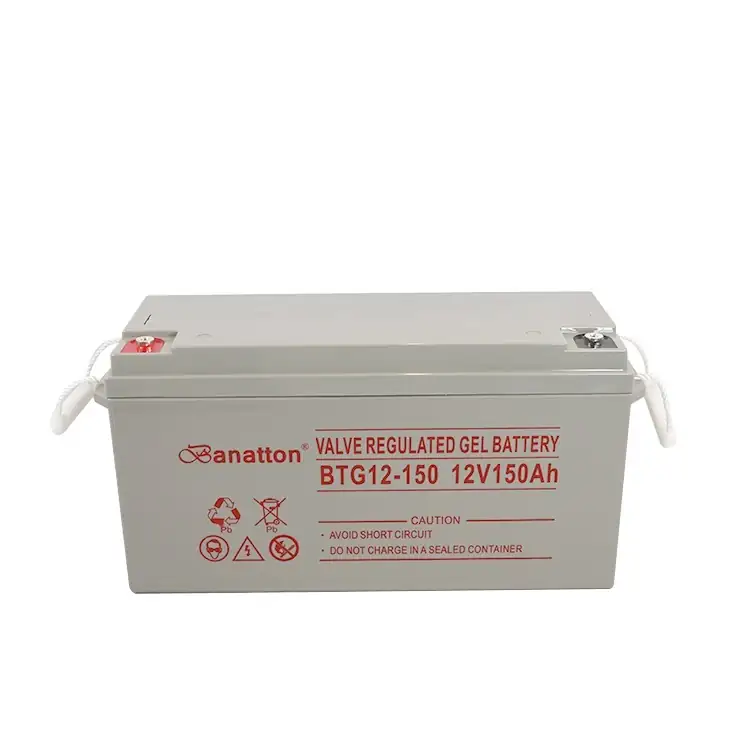

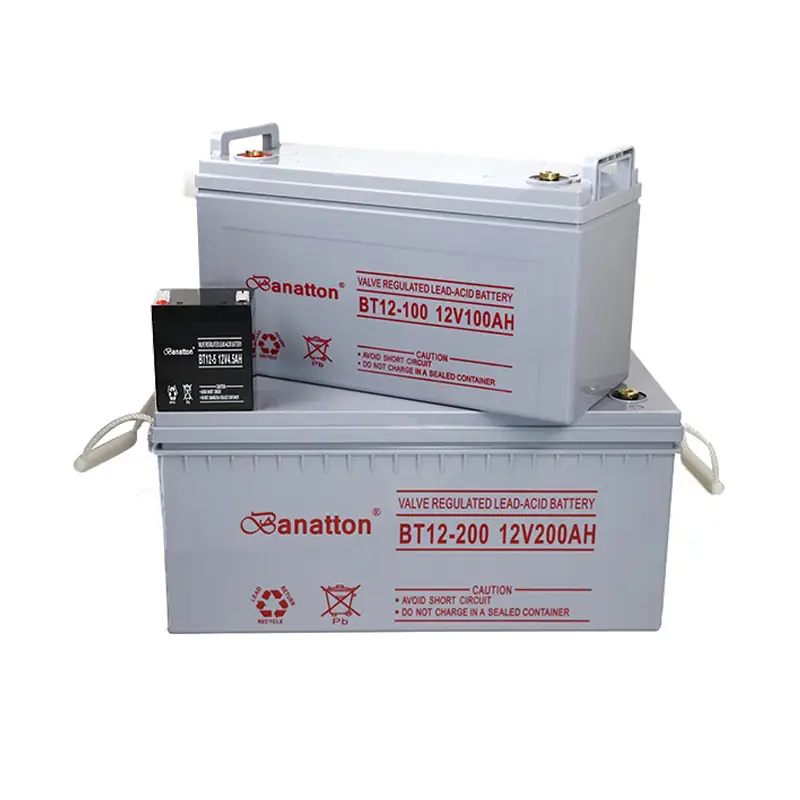

12V 65AH 100AH 200AH Rechargeable Storage AGM Lead Acid Solar Battery
Short Description：
Place of origin: China
Voltage range: 12V/2V
Sealed Type: Sealed
Maintenance Type: Free
Capacity range: 4.5AH-250AH
Terminal: Copper
Container Material: Strong ABS
Plates: Aluminum alloy grids
OEM/ODM: Yes
Supply Ability: 10000 Piece/Pieces per Month
Packaging: Carton box package or as you requested
PRODUCT DETAILS
Features:
- Good stability and high reliability
- Long service life
- Maintenance-free work
- High energy density
- Low pressure exhaust system
- Low self-discharge rate
- Very strong discharge recovery ability
- Wide working environment temperature
- Number of cycles（25°C）:30%DOD: 1700 cycles；50%DOD: 800 cycles；100%DOD: 400cycles
- Low self-discharge rate: 25 °C, less than 2% per month
- Long design life: 25°C, floating life of 15 years
- Applicable environment: -15~50°C
- Operating temperature range: -20~50°C
- Recommended operating temperature: 25°C
Technical Parameters:
| Model | Nominal Voltage | Nominal Capacity | Dimension(mm) | Referential Weight | Terminal | |||
|---|---|---|---|---|---|---|---|---|
| L | W | H | TH | |||||
| BT 12-4.5 | 12 | 4.5 | 90 | 70 | 101 | 106 | 1.47 | T1 |
| BT 12-7.2 | 12 | 7.2 | 151 | 65 | 94 | 100 | 2.2 | T2 |
| BT 12-9 | 12 | 9 | 151 | 65 | 94 | 100 | 2.5 | T1 |
| BT 12-12 | 12 | 12 | 151 | 98 | 94 | 100 | 3.43 | T2 |
| BT 12-17 | 12 | 17 | 181 | 77 | 167 | 167 | 5 | F6/F38 |

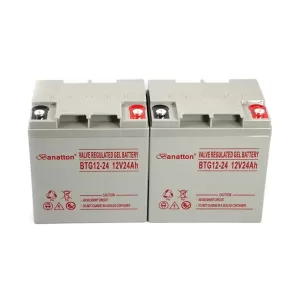

| BT 12-24 | 12 | 24 | 174 | 166 | 126 | 126 | 7.1 | F7/F38 |
| BT 12-24 | 12 | 24 | 165 | 126 | 174 | 174 | 7.45 | F6/F40 |
| BT 12-33 | 12 | 33 | 195 | 130 | 155 | 167 | 11 | T14/T6 |

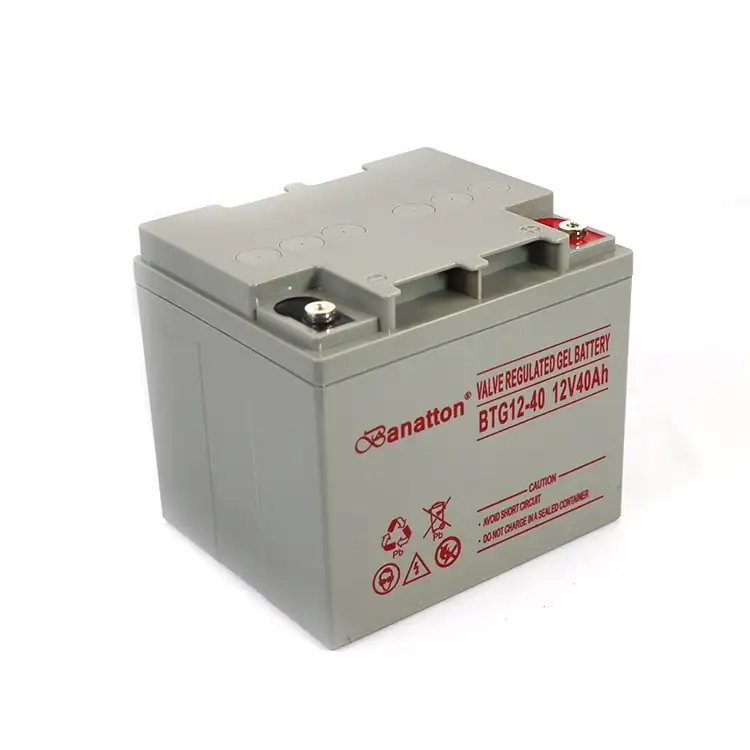

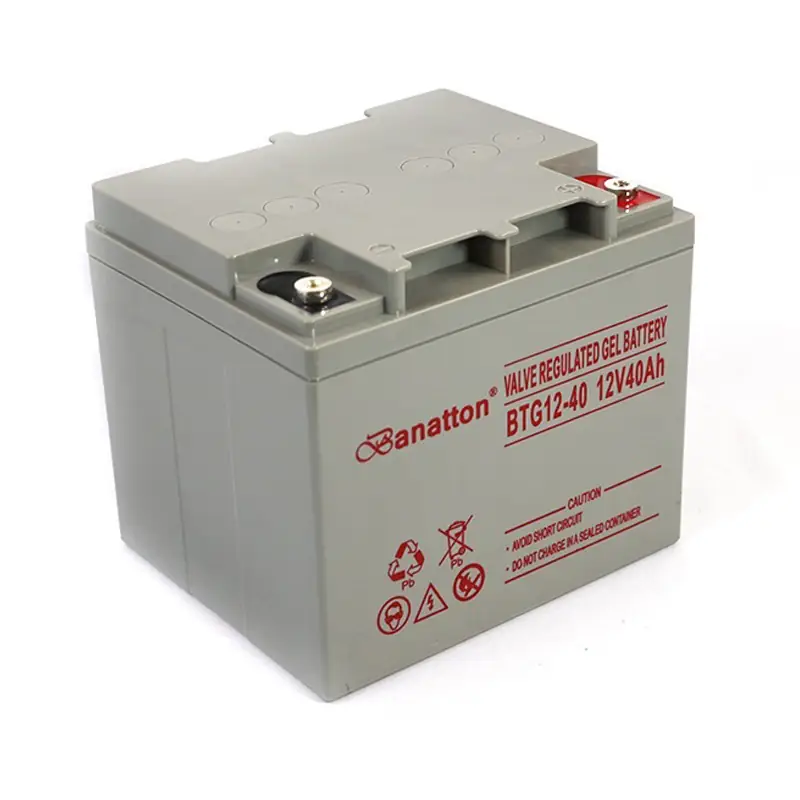

| BT 12-40 | 12 | 40 | 197 | 165 | 170 | 170 | 13.5 | T14 |
| BT 12-55 | 12 | 55 | 230 | 138 | 211 | 215 | 17.5 | T14 |
| BT 12-65 | 12 | 65 | 350 | 166 | 179 | 179 | 21 | T14 |
| BT 12-80 | 12 | 80 | 260 | 168 | 211 | 215 | 25.3 | T14 |
| BT 12-90 | 12 | 90 | 306 | 169 | 211 | 215 | 28.5 | T14 |
| BT 12-100 | 12 | 100 | 330 | 171 | 214 | 220 | 30.5 | T16 |
| BT 12-120 | 12 | 120 | 409 | 176 | 225 | 225 | 36 | T16 |
| BT 12-150 | 12 | 150 | 485 | 172 | 240 | 240 | 44.5 | T16 |
| BT 12-180 | 12 | 180 | 522 | 238 | 218 | 222 | 53 | T16 |

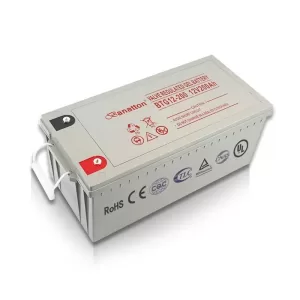

| BT 12-200 | 12 | 200 | 522 | 238 | 218 | 222 | 62.5 | T16 |
| BT 12-250 | 12 | 250 | 521 | 269 | 220 | 224 | 74.5 | T16 |
Applications:
Telecommunication equipment, Signal system, Emergency lighting system, Security system; EPS and UPS battery backup, Telecom, Solar and wind energy storage system;
Firefighting equipment standby power supply, Power station.
