Basic Mining PDu 24 ports C19 15A 16A each outlet 10A-160A Power Distribution Units for Mining and Data Center

Short Description:

Place of origin: China
Voltage Range: AC110V/AC220V/AC380V
Rated Current:10/13/15/16/20/25/32/50A/64A/125A
Output Quantity: 2/4/5/8/10/12/16/20way (optional)
Material: aluminum alloy
Height:1-2U
Application: IT room/data center/industrial/Mining
Certificate: ISO/CE/ROHS/TUV/UL
Installation: horizontal or vertica

Product Category:

PRODUCT DETAILS

Product details

PDU product can be adjusted at 180 degrees according to the needs of the user. with special bending plate, PDU product can be adjusted at 90 degrees. the use of L type bending plate and long L bending plate. realize the installation without angle, and increase the flexibility of installation.

Features
1. Input Interface: Single input, optional dual-input, input interface can be up to more than ten kinds of options.
2. Output interface: 2 -40bit output jack, the output interface options up to ten
3. Maximum Output Current (jack): 10A/16A/32A/63A /125A
4. Easily Create any Rack Size by Stacking and Connecting units
5. Can Hold any 19” network switch
6. C13 or C19 Socket or Optional
7. Can be Custumized with Your LOGO
Technical Parameters

Technical Parameters
380V 3Phase (LLLNG)to 220V Single Phase
Input Voltage 415V 3Phase (LLLNG)to 240V Single Phase
433V 3Phase (LLLNG)to 250V Single Phase
Input connector 63Ax5wires (or junction box, input breaker optional)
Frequency 50/60Hz
Total output power Max 2770Wx15
Soket Standard 24pcs C13(Customized)

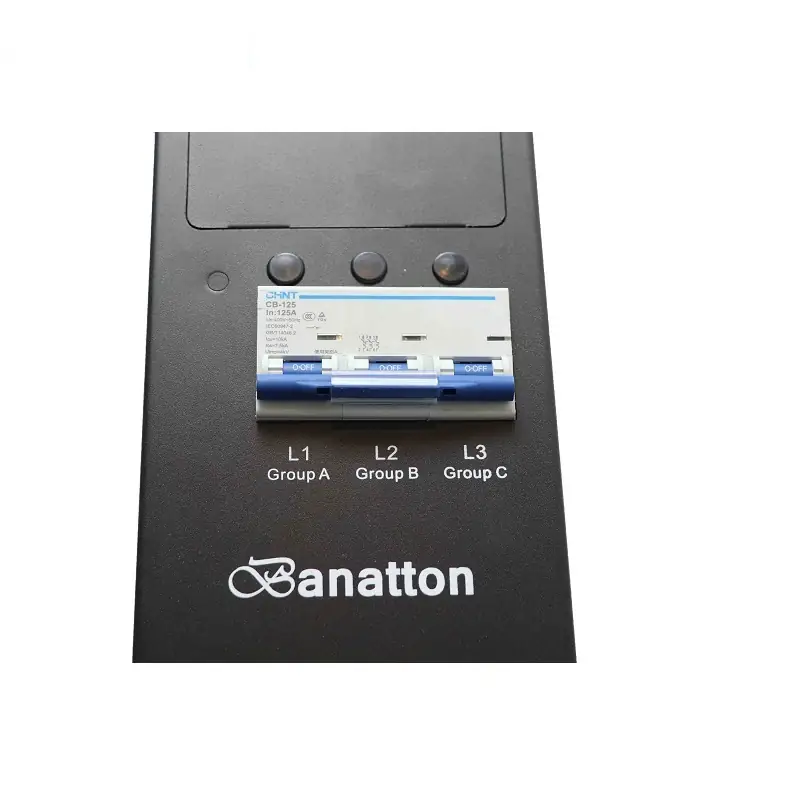

Breaker 3pcs 1P 63A circuit breaker with UL or CE
Wire specification UL certification, with flame retardant function
Test items
Hi-pot test PASS
Salt Spray Test PASS
Grounding Test PASS
Polarity Test PASS
IR Test PASS
Socket Life Test PASS
Aging Test PASS
Product color& material
Product color: Silver white or black
Plastic flame retardant rating UL94V-0 grade

Applications:
Date Center, Lighting Center, Engine Room, Financial Center,Educational Institution, Production Environment, Mining Farm.
