How to Choose the correct uninterruptible power supply: in-depth study of pure sine wave and on-line UPS system?

Key Takeaways：

In our numbers-oriented economy, the cost of downtime is shocking. According to the Uptime Institute’s annual downtime analysis, which provides specific data to prove the rationality of infrastructure investments, more than 60% of data center downtime will result in a total loss of at least $ 100,000, of which power-related problems are the main reasons. This grim reality makes choosing the correct uninterruptible power supply (UPS) an important business decision, not just an IT procurement. However, with the frequent use of terms such as online UPS 20 kVA and pure sine wave UPS, how do you browse these options? This guide will explain what a UPS power supply system is, why its design topology and output quality are of paramount importance, and how to determine the correct specifications to protect your most valuable equipment.

What is an uninterruptible Power supply? An important guardian of power

Uninterruptible Power Supply (UPS) is an electronic system, which aims to provide seamless standby power supply and protection to connected electrical loads when the main power supply fails. Its core mission is not just to spare battery; It acts as an alert power regulator, constantly filtering and regulating the input power to protect sensitive hardware from power surges, voltage dips, spikes and frequency changes. The ultimate goal of any powerful UPS power supply solution is to ensure the continuity of operation, either to fill the gap before the standby generator takes over, or to provide enough “ride-through” time for a safe and controllable shutdown of systems. The Critical Operation of a Double-Conversion Online UPS: A Three-Stage Process the most reliable topology for mission-critical applications is the double-conversion online design. It works like this:

1. First conversion (rectification): the input alternating current (AC) of commercial power is converted into direct current (DC) immediately. This stage supplies power for the next stage and charges the battery pack of the system. Any irregularities of the main power supply is effectively prevented here.

2. Second conversion (inverter): Now clean DC power is converted back to AC power. It is in this inverter stage that a perfect and practical sine wave is carefully reconstructed by high-quality pure sine wave UPS. This kind of output is original and stable in electricity, and completely isolated from input abnormality.

3. Seamless battery backup: During the complete failure of the public facilities, the DC power from the batteries flows to the inverter without interruption-there is no transfer switch delay. The connected devices continue to operate without any interference.

Table: Key Performance Parameters of a High-Capacity Online UPS.

Unique Advantages: Why pure sine wave and online topology are very important

Choosing a double-conversion Online UPS 20kVA  over simpler models is an investment in absolute power integrity. Its “always-online” architecture means connected equipment never sees raw utility power. The importance of pure sine wave UPS output can not be exaggerated. As highlighted in technical resources from organizations like the IEEE Power & Energy Society, which provides detailed papers on the impact of power conditions, modern switch-mode power supplies in servers, network gear, and medical devices are highly sensitive to waveform quality. A pure sine wave can ensure the best efficiency and prevents the potential damage caused by overheating, audible noise and poor step approximations. Unique benefits include:

Complete Power Isolation:  Equipment is shielded from all grid-borne problems.

Zero transfer Time: eliminates the risk of collapse when switching to the battery.

Frequency Stability & Conversion:  Maintains or even converts input frequency (50 Hz/60 Hz), vital for international deployments and timing-sensitive industrial equipment.

Excellent compatibility: its robust design, active input power factor correction and other technologies, input power factor is more than 0.99, which makes it very compatible with generators and smoothes the unstable output that generator sets often produce.

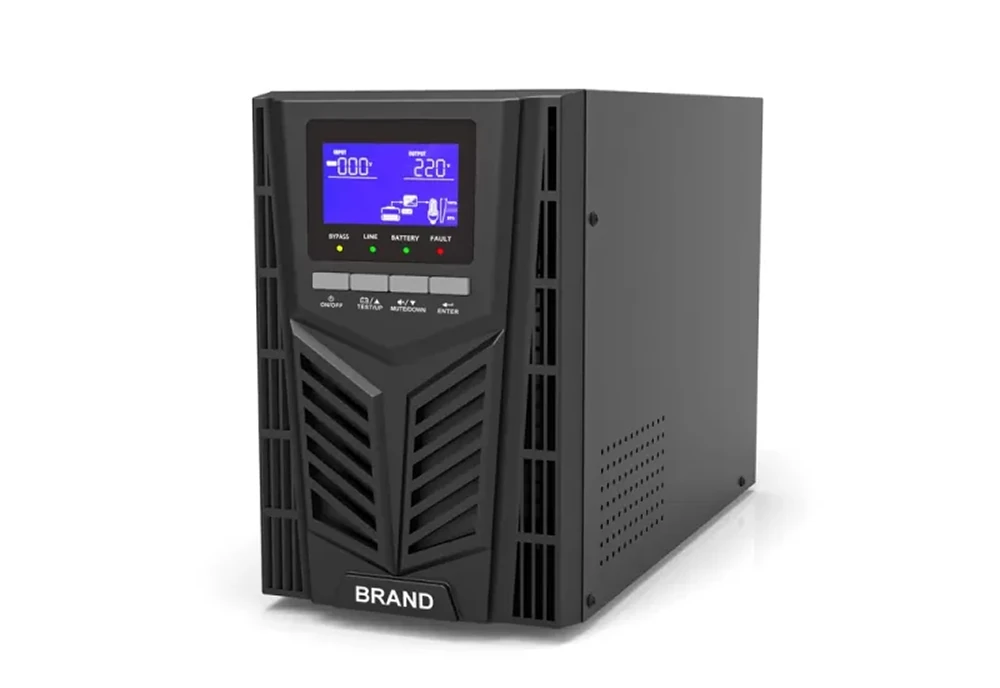

Decoding the Specifications: The Hallmarks of a Robust Online UPS 20 kVA.

The technical specifications of a UPS show the true situation of its performance. A commercial-grade online UPS 20 kVA is designed for flexibility, as can be seen from the following key functions from industry-leading models.

Intelligence and Efficiency: Using DSP (Digital Signal Processor) control, all power parameters can be managed in real time and accurately. Combined with the three-level inverter technology, high efficiency and low distortion are realized. When the input power is stable, ECO can further save energy by bypassing double conversion.

Unparalleled input flexibility: wide input voltage range of 55 ~ 145 v and frequency range of 40 ~ 70 Hz allow operation in extremely unstable areas of power grids. Features like 50 Hz/60 Hz Frequency auto sensing  and Cold start function  add critical operational flexibility.

Handling demanding Loads: Specialized units are configured to accept the load of laser printer and ultrasonic system, and manage high surge current that will trip the standard UPS systems.

Reliability design: In addition to electronic products, the physically reliable design is made of solid glass fiber substrate (FR 4) double-sided PCB. Well-designed ventilation and conformal coating can prevent moisture, dust and thermal stress, thus ensuring the service life.

The main application scenario

A high-performance UPS power supply system such as online UPS 20 kVA are indispensable for industries where power reliability equals operational integrity.

IT & Network Infrastructure: Protecting small to medium server rooms, workstations, routers, switches, and critical monitoring equipment  from data corruption and network downtime.

Industrial automation and key systems: Ensure the uninterrupted operation for ATM networks, automatic ticket vending machine (TVM), railway and subway signal systems and industrial SCADA control system. In these systems, power failure can cause the whole operations to be suspended.

Commercial & Medical Environments:  Safeguarding PCs, point-of-sale (POS) systems, diagnostic equipment, and communication networks in offices, retail, and healthcare settings.

Frequently asked Questions and answers

Q: Does a UPS provide sufficient surge protection on its own?

A: Although the high-quality UPS power supply system includes built-in input and output surge suppression components, it should be regarded as a layer of comprehensive protection strategy. As stated in the product specifications, internal protection “can only eliminate the first-level surge protection in the distribution cabinet at most.” In order to obtain complete protection, a coordinated surge protection device (SPD) system should be installed at the service entrance and the switchboard according to the national electric codes. UPS power supply device provides the ultimate equipment-level defense.

Q: What are the important preventive measures to obtain the best UPS performance and service life?

A: 1. Environment: Install the UPS in a cool, well-ventilated and clean place to prevent overheating. Overheating is the main factor to shorten the life of battery and components.

2. Load Management: Avoid connecting high inrush motor loads (for example. Large air conditioners, industrial motors) are directly connected to the UPS, because they can lead to overload. When powering on the connected equipment, always follow the order of “first big, then small”.

Generator selection: If the system is designed to use the generator during long-term power failure, an important rule is to ensure that the rated power of the generator is at least twice that of UPS. This takes the input current harmonics of UPS into account and provides stable operation. Please keep the output of the generator stable before the UPS takes on the load.
