Voltage stabilizer sizing: kVA, loads and input range

Start voltage stabilizer sizing with the load that will run at the same time, using documented kW and power factor or measured current at a stated voltage and phase. Calculate the base kVA, then check starting demand, low-input capability, growth and site limits before choosing a model.

A calculation can be correct while the product choice is wrong. The running load may fit the label, but a machine start or a low supply voltage may put the proposed unit outside its rated duty. You need both a clear load record and a supplier response to those operating conditions.

This guide turns voltage stabilizer sizing into a sequence you can review: collect the inputs, choose the formula, record the remaining demands and request evidence for the proposed rating. It includes worked examples and a worksheet for industrial and commercial enquiries. If you first need to compare regulation types, start with the broader voltage stabilizer selection guide.

Key takeaways

• Keep kW, kVA and amps separate; record the conditions behind each value.
• Use line-to-line voltage in the balanced three-phase current formula.
• Assess starts and planned additions separately from the running load.
• Check usable output across the actual input range, including low voltage.
• Treat base kVA as a calculation result, then obtain model-specific confirmation.

Already have voltage records and a load list? Send Banatton your sizing inputs, including supply phase, operating events and planned additions, for a review against a proposed configuration.

Start voltage stabilizer sizing with a load record

Define the equipment that the unit will supply. It might be one machine, a control panel or a group of loads. Put that boundary at the top of the worksheet so everyone uses the same scope for voltage stabilizer sizing.

Record which loads can run together. Adding every installed nameplate may overstate demand when equipment cannot operate at the same time. Counting only a quiet-shift reading may miss the site’s normal maximum.

Distinguish a measurement from an assumption

For each value, note its source and operating state. A meter record, an equipment data sheet and an estimate do not have the same status. Keep unknown fields visible instead of filling them with an assumed power factor or a convenient current value.

For voltage stabilizer sizing, use electrical input demand. A motor’s shaft power describes mechanical output; it is not automatically the electrical kW drawn from the supply. Ask the equipment maker for input data and relevant operating conditions when the nameplate does not provide enough detail.

Use an appropriate measurement plan for the site. Record voltage and current at named points, with the phase arrangement and equipment state. A qualified person should decide how to capture starts, changing loads or other events that a single display reading may miss.

Resolve the boundary before calculating

Illustrative scenario: A workshop sends a list of all its machines for voltage stabilizer sizing. During review, it confirms that two machines cannot run together, while a compressor may start with either one operating. The team separates the running combinations from that start event before asking for a rating.

This does not establish the right model. It produces a better description of the duty that a supplier must assess. The same method helps avoid treating a main breaker rating as measured demand: a protective device label does not reveal the actual load profile.

Give each load-record entry a status: measured, stated by the equipment maker, estimated or still unknown. Include a date and a short note about the load state. For voltage stabilizer sizing, that small detail lets another reviewer see which figures are ready to use and which need more work.

Keep a copy of the source with the worksheet. A photo of a nameplate may explain one rating, while a meter log shows a different operating state. If the two seem to conflict, resolve the difference before using either as the maximum demand for voltage stabilizer sizing.

Choose the right kW, kVA and current formula

Use the formula that matches the data you have. Real power is expressed in kW; apparent power is expressed in kVA. Power factor relates the two, while current must be interpreted with its voltage and phase arrangement.

The basic relationships appear in Gruppo Energia’s sizing guide. Use known load data with them rather than adopting a default power factor or a fixed margin. These formulas support the base calculation, not final product approval.

Calculate from electrical kW and power factor

Suppose a defined simultaneous load is documented at 24 kW with a total power factor of 0.8. Its base apparent power is:

24 kW ÷ 0.8 = 30 kVA.

This is an assumed arithmetic example for voltage stabilizer sizing. It does not establish that a 30 kVA unit suits the site. Starting duty, input range, environmental limits and any planned demand still need review.

Use the power factor of the defined load, not a value chosen because it appears in a product table. With complex or changing loads, obtain suitable aggregate measurements or engineering calculations. Summing separately calculated load values can provide a planning bound, but it is not always an exact representation of the combined load.

Check current with the correct phase basis

A single-phase load at an assumed 220 V and 30 A gives 220 × 30 ÷ 1,000 = 6.6 kVA. Preserve that result through the calculation instead of rounding upward at each step. Record any later allowance or product-rating choice separately.

Write the units next to every input. Check whether a current value belongs to one phase or to a different equipment boundary. This makes voltage stabilizer sizing easier to audit and helps catch a copied value that no longer matches the calculation.

For a balanced three-phase example, assume 400 V line-to-line and 50 A line current. Then √3 × 400 × 50 ÷ 1,000 gives approximately 34.64 kVA. Using phase-to-neutral voltage in that same expression would describe a different calculation basis and give the wrong result.

The balanced formula is a starting point for voltage stabilizer sizing under its stated conditions. If phase loads differ widely, ask a qualified reviewer how to assess them. Ask for a closer waveform check where needed. Do not force a complicated load into a formula that assumes otherwise.

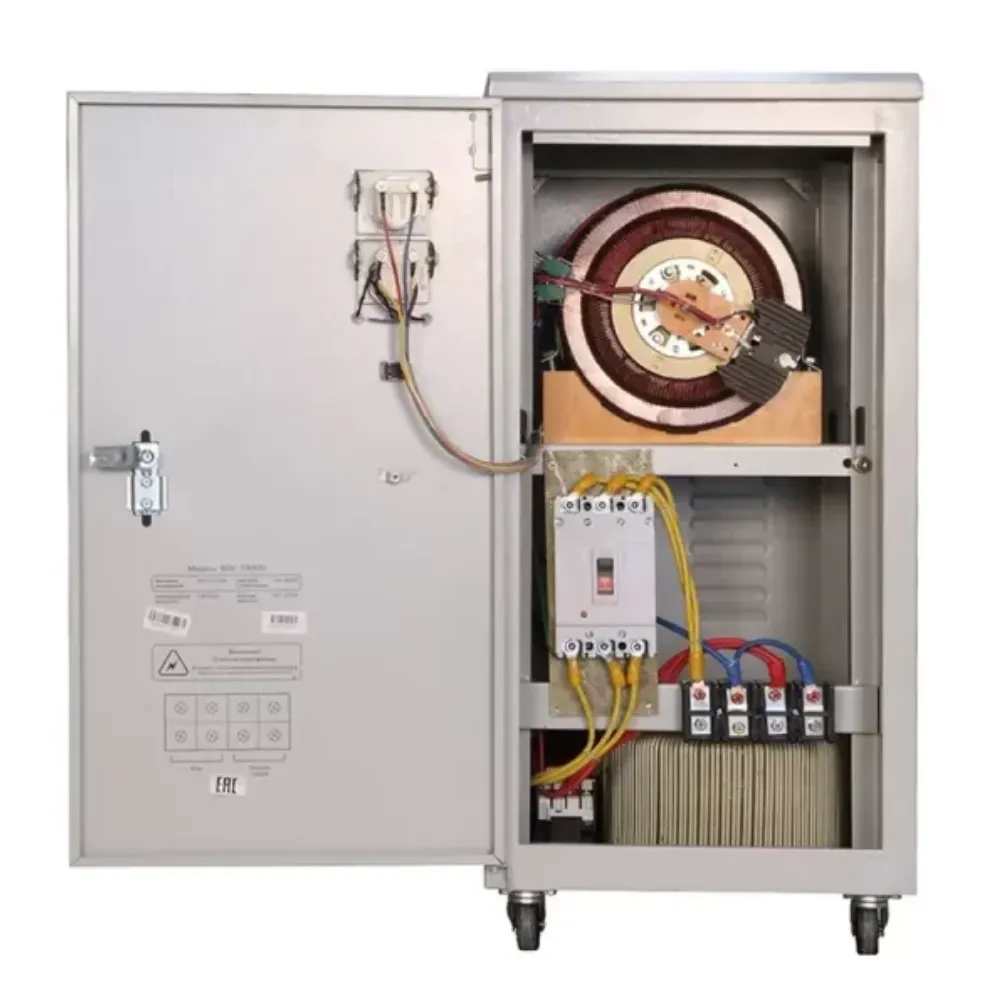

Separate starts, growth and uncertain inputs

Running demand is one part of voltage stabilizer sizing. A start, a sudden load step or repeated cycling can impose a different duty. Ask what happens, how large the demand is and how long it lasts, rather than applying one multiplier to every motor or compressor.

Describe the event as well as the load

Record the equipment, start method, operating sequence and other loads already running. Where available, attach the equipment maker’s data or a suitable event record. The supplier needs enough information to compare that event with the proposed unit’s overload and correction behavior.

A larger nominal kVA label alone does not prove the required response. For voltage stabilizer sizing, ask for the applicable magnitude, duration and recovery conditions. A brief event rating and a continuous output rating answer different questions.

Add named future loads separately

Return to the assumed 24 kW, PF 0.8 load, which gave 30 kVA. Suppose a planned addition is documented at 6 kW and PF 0.75. Its separate apparent-power input is 6 ÷ 0.75 = 8 kVA.

Adding 30 and 8 gives a conservative 38 kVA planning bound for those stated inputs. It is not necessarily the exact combined apparent power and is not a recommendation for a 38 or 40 kVA product. Confirm the actual simultaneous demand, start events and permitted operating conditions before choosing a rating.

Keep each allowance visible in voltage stabilizer sizing. Name the future equipment, describe whether it runs with the existing load and state what remains unknown. An unexplained percentage does not show whether it covers growth, measurement uncertainty or an operating event.

Try a second operating combination if the site has more than one normal duty. For example, record the load group used during production and the one used during cleaning or changeover. Voltage stabilizer sizing should retain the combinations that matter, rather than collapse different states into one unexplained average.

Label any spare capacity as a planned choice, not as measured demand. State which additions it covers and which events still need a supplier check. That gives the buyer a clear way to revisit voltage stabilizer sizing if the planned equipment changes.

If the inputs remain incomplete, request a preliminary review with the assumptions listed. Ask Banatton to review the load and event records, including the current and future operating combinations, rather than requesting a model from one total alone.

Check voltage stabilizer sizing at low input voltage

Input range and capacity need to be assessed together. Ask whether the stated output is available at the lowest input expected at the site. A unit may operate over a stated voltage window. That alone does not prove it supports full output across the whole range.

The Arnav selection guide highlights the need to assess input-current duty and changing loads alongside the permitted input range. Use that principle to frame questions about the actual model, with its own supporting data.

Understand the low-voltage current question

Illustrative scenario: A buyer compares two single-phase supply conditions, 230 V and 180 V. For this simplified example only, delivered real power, efficiency and input power factor stay unchanged. The current ratio is 230 ÷ 180, or about 1.278. That means roughly 27.8% more input current at the lower voltage.

That ratio explains why low-input operation matters to voltage stabilizer sizing. It is not a measured Banatton result, a derating curve or a conductor-selection instruction. The actual unit’s current limits and operating behavior must come from its documentation and the project assessment.

If a supplier lists both an operating range and a regulation range, ask how each is defined. Request the supported output, accuracy and applicable rating at the required input conditions. A voltage range without those details leaves the capacity question open.

Check the proposed configuration

The public Banatton SBW product table lists an input range of 304–456 V AC and output configurations of 380/400/415 V AC. These are product-family reference values, not evidence that every configuration delivers full output across the entire input window.

For voltage stabilizer sizing, request the exact model’s rating conditions and any applicable capacity limits. Confirm the required output configuration rather than assuming that listed voltage options switch automatically. Keep the supplier’s versioned response with the load calculation.

Build a model review and RFQ worksheet

Use the calculation to prepare a request for quotation, or RFQ. The useful output of voltage stabilizer sizing is a stated load basis plus a list of conditions the proposed model must meet. That makes two supplier responses easier to compare.

Keep one version of the worksheet for the enquiry and another for the approved response. Add the proposed model and the reference for each supporting document. A clear version record helps the buyer and supplier check that both are discussing the same voltage stabilizer sizing inputs.

Turn open questions into review items

For a single-phase application, use the 220 V AC selection guide to organize voltage-specific questions. For a project already within that larger capacity scope, the 100–300 kVA industrial guide addresses the next procurement stage. Keep the general calculation here separate from choosing a particular product family.

Preserve the assumptions through quotation review

Illustrative scenario: A buyer receives two offers based on the same running kVA. One offer states an input condition; the other does not. The buyer requests matching rating conditions and a response to the recorded start event before comparing the proposed capacities.

The lesson for voltage stabilizer sizing is to keep unresolved items attached to the quotation. A price and a nominal rating do not close a missing-data question. If the site or load changes, have the affected duty reviewed again.

Before accepting a response, review the open items one by one. Each should have an answer, an agreed assumption or a clear request for more information. Voltage stabilizer sizing is ready for the next approval step when the responsible reviewer can see how the proposed rating meets the stated duty.

Common voltage stabilizer sizing questions

Is kW the same as kVA?

No. kW describes real power, while kVA describes apparent power. For a defined load, use its known total power factor. Divide kW by PF to obtain kVA.

Do not assume PF equals one or use motor shaft power as electrical input without checking the equipment data.

Can I choose the size from the main breaker amps?

Breaker amps alone do not describe simultaneous demand or load events. Obtain the load record at a stated voltage and phase. Voltage stabilizer sizing also needs the input range and applicable model limits; it does not establish the circuit’s cable or protection design.

What extra capacity should I allow for a motor start?

Use the start information for that equipment and operating sequence. Record duration as well as magnitude, then ask the supplier to check the proposed unit’s capability. A universal multiple of running power cannot stand in for those conditions.

Should I always add the same safety margin?

State what an allowance is intended to cover. Planned growth, uncertain demand and a short start event are separate inputs to voltage stabilizer sizing. Keep them visible rather than assuming that one percentage proves all requirements are met.

Does the minimum input voltage still support full load?

Check the exact model’s rating conditions and supporting data. An advertised operating range does not answer the full-load question on its own. Request the applicable output capability, derating and behavior outside the permitted conditions before approving the proposal.

Good voltage stabilizer sizing leaves a clear record: the base load, the correct formula, the operating events and the remaining model checks. Keep those inputs together as the project moves from enquiry to approval. Share your worksheet with Banatton to discuss the proposed configuration and the documents needed for review.
