PRODUCT DETAILS

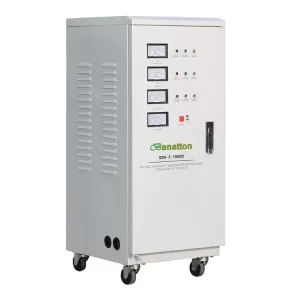

China Servo three-phase 90kva 45kva 30kva 20kva 15kva automatic voltage regulator stabilizer
Short Description：
Place of origin: China
Phase: Three Phase
Current Type: AC
Input Voltage: AC 240v-450v
Output Voltage: 380/400/415VAC
Type: Servo Motor Control
Certificate: ISO/CE/ROHS
OEM/ODM: Yes
Supply Ability: 10000 Piece/Pieces per Month
Packaging: Carton box package or as you requested
PRODUCT DETAILS
SVC Series Servo Motor Control AC Voltage Regulator
- SVC Series vertical three phase servo type high accuracy full automatic AC voltage regulator adopts the international advanced technology and intelligent CPU centralized control technology.

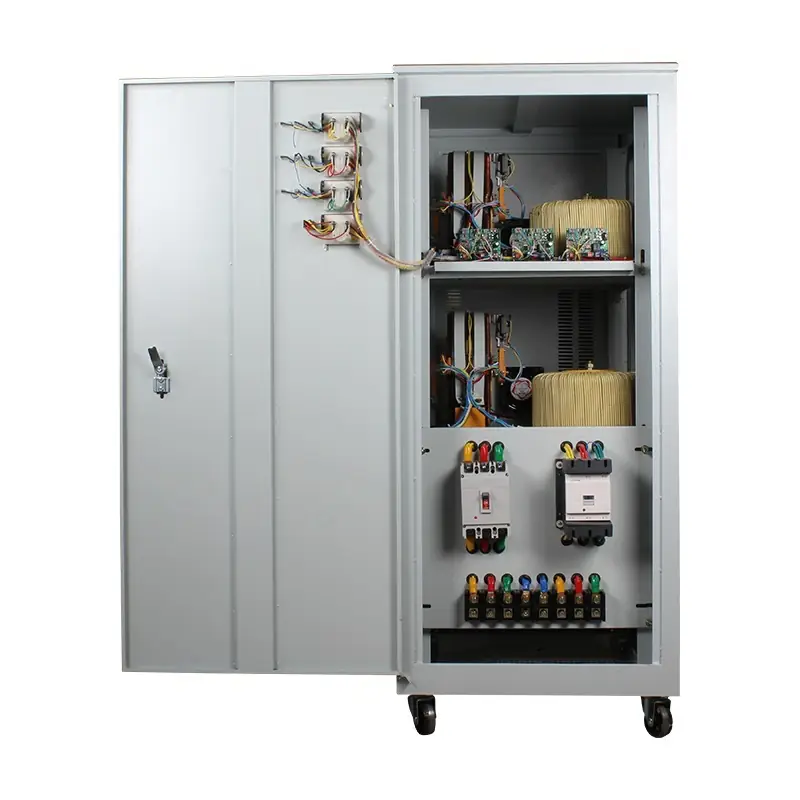

- It has the advantages of high efficiency, beautiful appearance and reliable performance, easy to moving, large capacity and so on. which is composed of servo motor, control circuit, compensator.
- It has advantages of small volume, light weight, high efficiency, high precision, wide voltage stabilizing range, no waveform distortion etc. All products have over voltage, delay, temperature and error protection and also voltage two-way indication. which make the function of the product more perfect and reliable.
Features：
- Wide Input voltage: three phase AC240~450V
- High technology: Programmed control computerized
- The high accuracy of the output voltage(380v+/-1.5%)
- Quality insurance: Main spare parts made by ourselves, for example, transformer, PCB
- Perfect protection function: Over/low voltage protection, over-heat/load protection, short circuit protection.
- High efficiency: More than 95%.
Technical Parameters
| TECHNOLOGY PARAMETER | ||||||

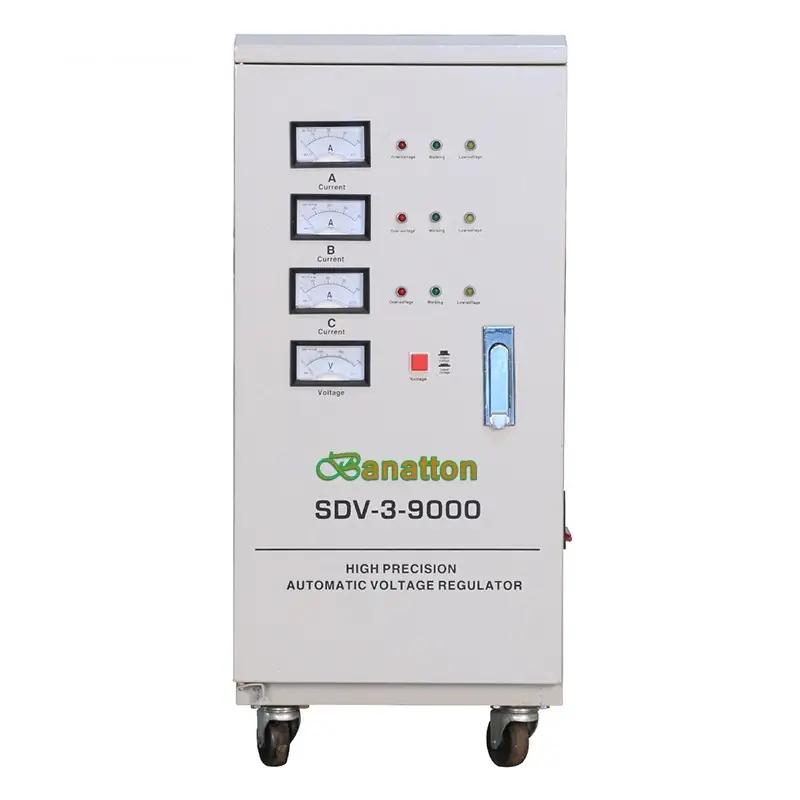

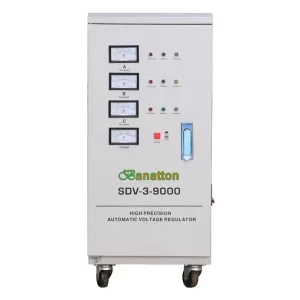

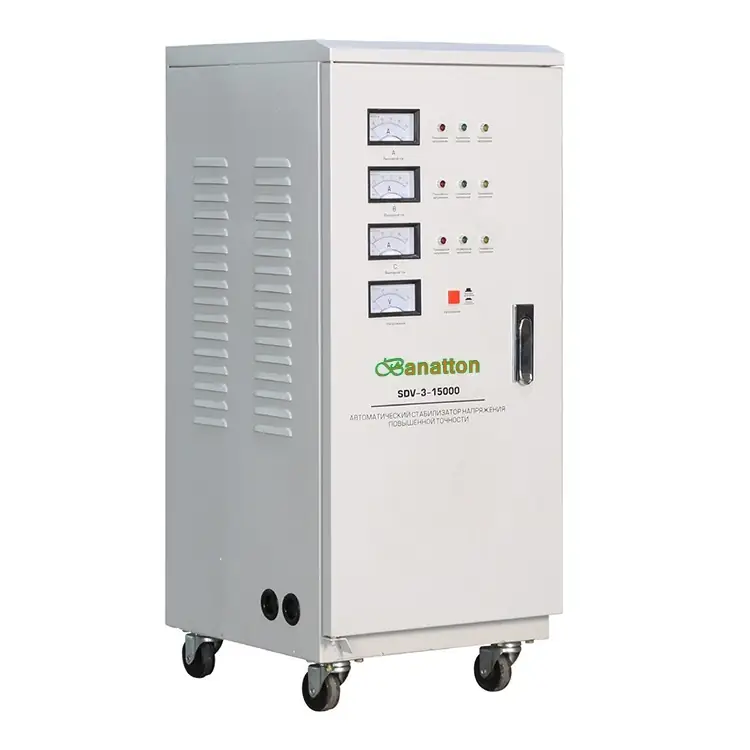

| Model | SDV-3- 9000VA | SDV-3-15000VA | SDV-3-20000VA | SDV-3-30000VA | SDV-3-60000VA | SDV-3-90000VA |
| Technology | Servo Motor Control System +Micro compute programed control | |||||
| Meter Display | Color | According to customer requirement | ||||
| Info | Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection | |||||
| Protection | Over Voltage | Output voltage ≥420V±4V | ||||
| Low Voltage | Output voltage ≤325V±4V | |||||
| Over Loading | more than 120% | |||||
| Over Temperature | 120°C±10°C | |||||
| Delay time | 8 second | |||||
| Language | English/Russia/Chinese | |||||
| Input Voltage | AC 240-450V | |||||
| Output Voltage | 380V±2% or 380V±4% Adjustable | |||||
| Frequency | 50Hz/60Hz | |||||
| Phase | Three Phase | |||||
| Efficiency | ≥95% | |||||
| Ambient Temperature | -15°C~45°C | |||||
| Waveform distortion | no additional wave form distortion | |||||
| Insulating Resistance | Normally more than 2MΩ | |||||
| Power | 9000W | 15000W | 20000W | 30000W | 48000W | 72000W |
| Packing Size(mm) | 454×414×730 | 485×455×910 | 535×515×973 | 535×515×973 | 810×610×1345 | 810×610×1345 |
Applications:
Mainly used in Computer, Home, office equipment, Test equipment, Light system, Safe alarm system, Ray equipment, Medical equipment, Copy machine, Numerical control machine tools, Industrial automation equipment, Color and drying equipment, Hi-Fi equipment etc.
