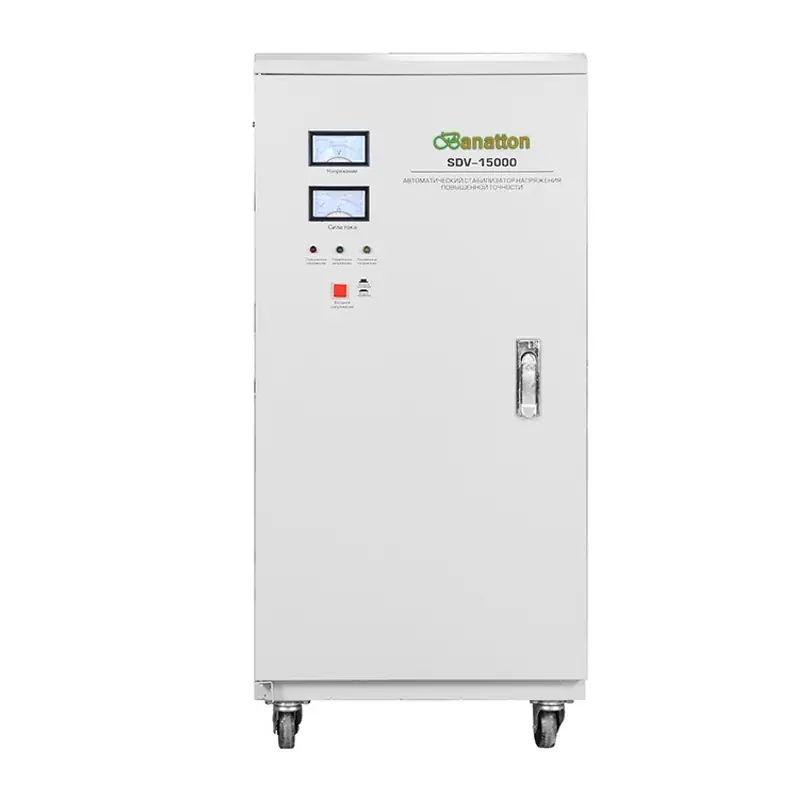

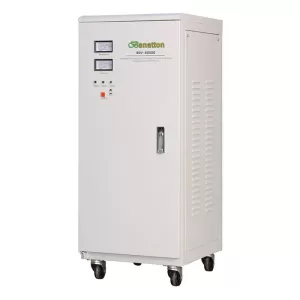

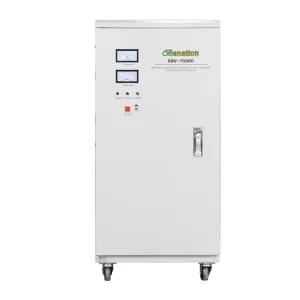

Single Phase 220V 15KVA 20KVA 30KVA Servo Motor Type AC Automatic Voltage Regulator Stabilizers
Short Description：
Place of origin: China
Phase: Single Phase
Current Type: AC
Input Voltage: 140-260VAC
Output Voltage: 220V±1.5% /3%
Type: Servo Motor Control
Certificate: ISO/CE/ROHS
OEM/ODM: Yes
Supply Ability: 10000 Piece/Pieces per Month
Packaging: Carton box package or as you requested
PRODUCT DETAILS
Features：
1.Wide input voltage: AC 140~260V or customize
2.High technology: programmed control computerized
3.The high accuracy of the output voltage(220V±3%)
4.Fashion design: Meter Display or LCD which can show all protection functions, such as input voltage, output voltage, temperature, delay time, loading. fault indication and so on.
5.Quality insurance: Main spare parts made by ourselves, for example, transformer, PCB.
6.Perfect protection function: over/low voltage protection, over-heat/load protection, short circuit protection.
7.Option function: with voltage regulator and mains supply two kind output voltage choice function, in mains supply relatively stable season, the user can put voltage stabilizer in mains supply state, there is no power consumption, it is economic and convenient.
8.High efficiency: More than 95%.
Technical Parameters
| TECHNOLOGY PARAMETER | ||||

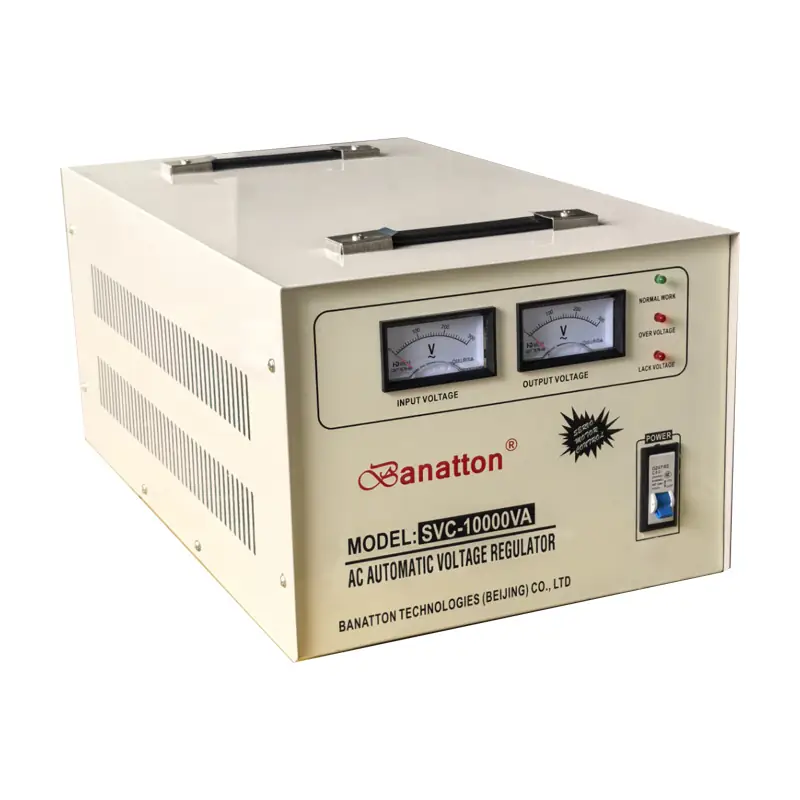

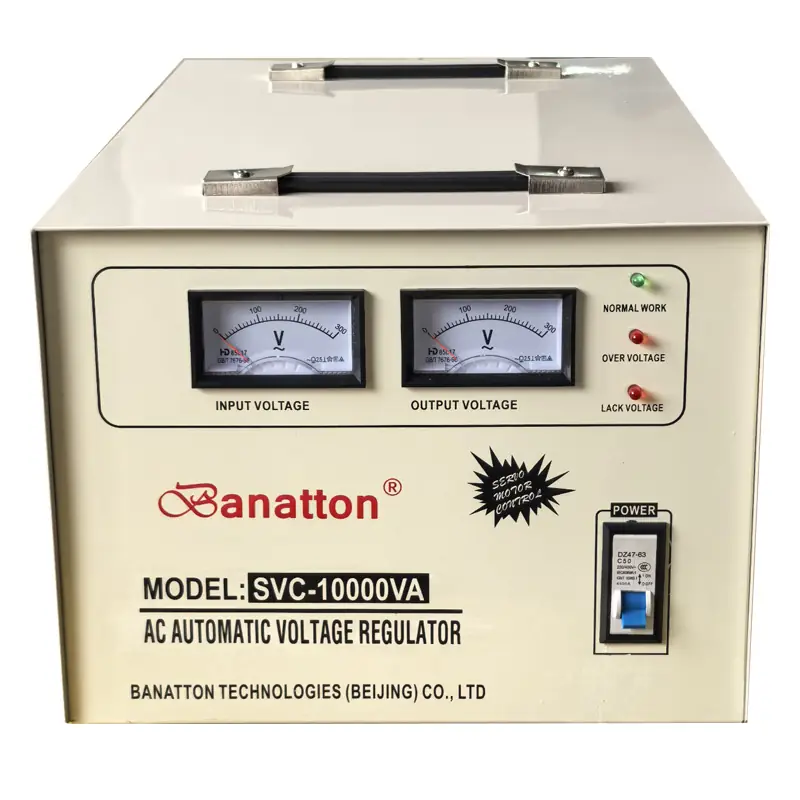

| Model | SVC-10000 | SVC-15000 | SVC-20000 | SVC-30000 |
| Nominal Power | 10000VA | 15000VA | 20000VA | 30000VA |
| Power Factor | 0.6-1.0 | |||
| Input | ||||
| Operating Voltage Range | 120~275V | |||
| Regulation Voltage Range | 140~260V (custom made) | |||
| Frequency | 50HZ | |||
| Connection Type | Input terminal block | |||
| Output | ||||
| Operating Voltage | 180~255V | |||
| High Cut Voltage | 255V | |||
| Low Cut Voltage | 180V | |||
| Safety Cycle | 3 Seconds / 180 Seconds (Optional) | |||
| Frequency | 50HZ | |||
| Connection Type | Output terminal block | |||
| Regulation | ||||
| Regulation % | 1.5% / 3.5% | |||
| Number of Taps | NO | |||

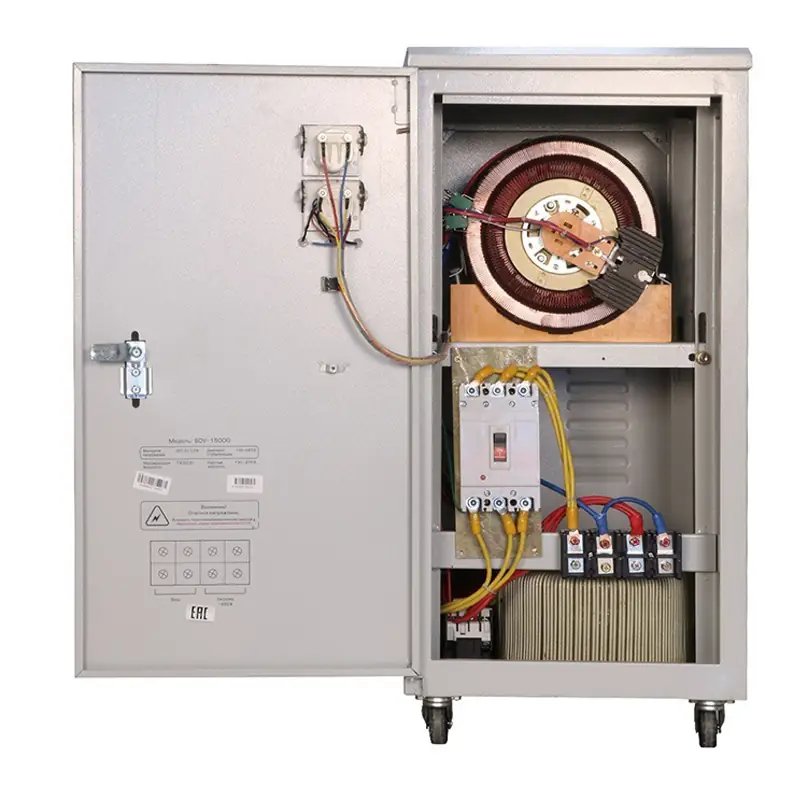

| Transformer Type | Toroidal auto transformer | |||
| Regulation Type | Servo type | |||
| Indicators | ||||
| Digital / Meter display | Input voltage, Output voltage, Load current | |||
| Protection | ||||
| Over Temperature | Auto Shutdown at 120 ℃ | |||
| Short Circuit | Auto Shutdown | |||
| Overload | Auto Shutdown | |||
| Over / Under Voltage | Auto Shutdown | |||
Applications:
Mainly used in Computer, Home, office equipment, Test equipment, Light system, Safe alarm system, Ray equipment, Medical equipment, Copy machine, Numerical control machine tools, Industrial automation equipment, Color and drying equipment, Hi-Fi equipment etc.
