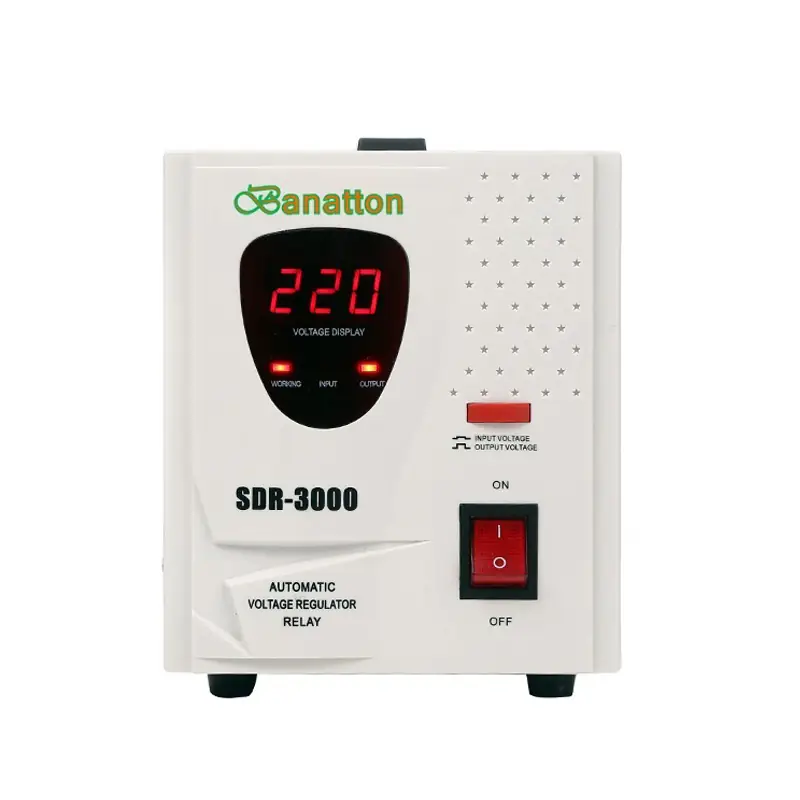

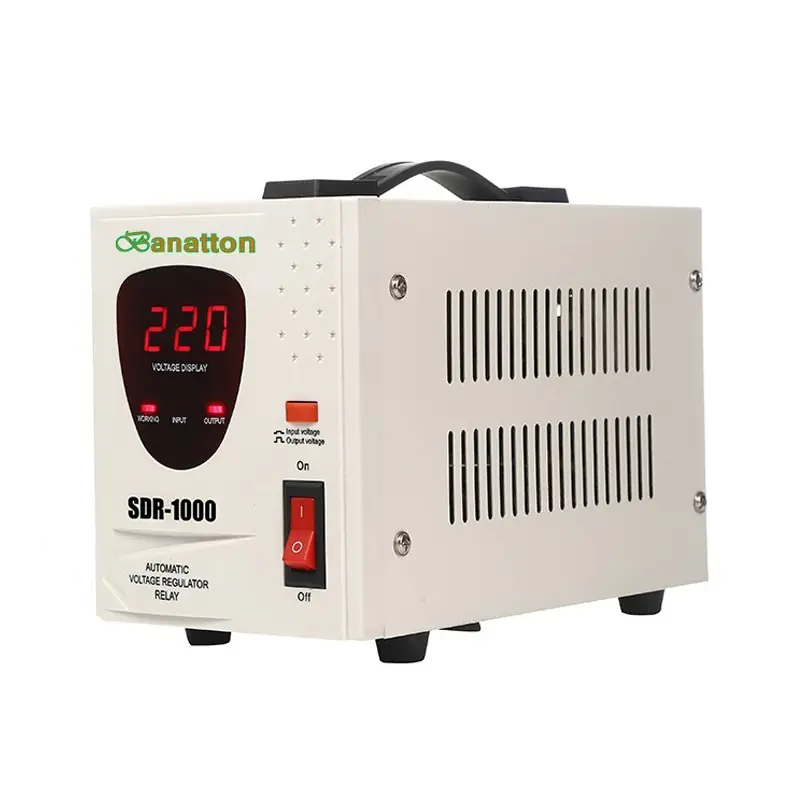

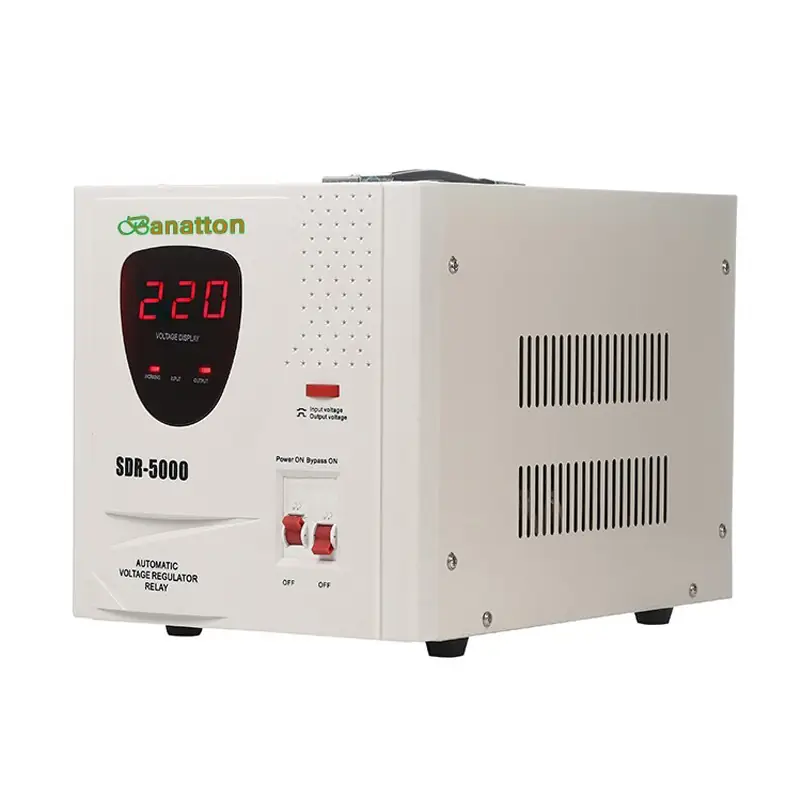

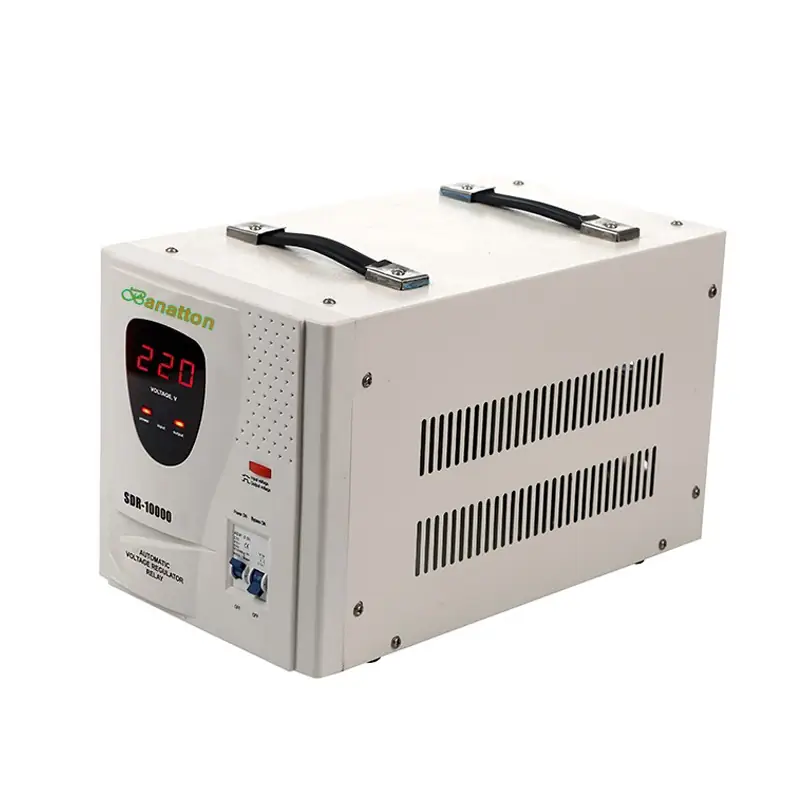

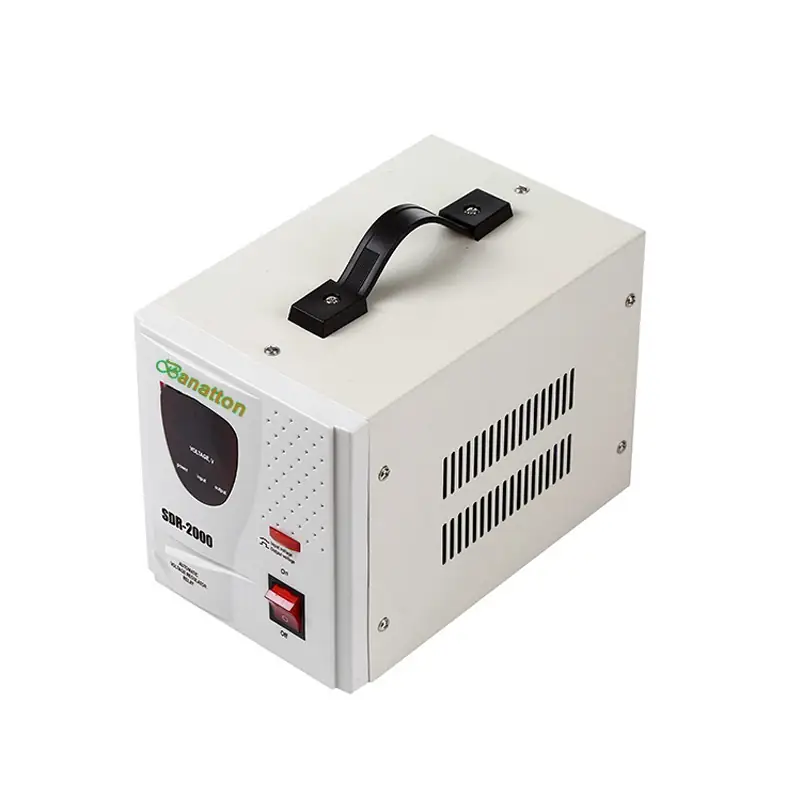

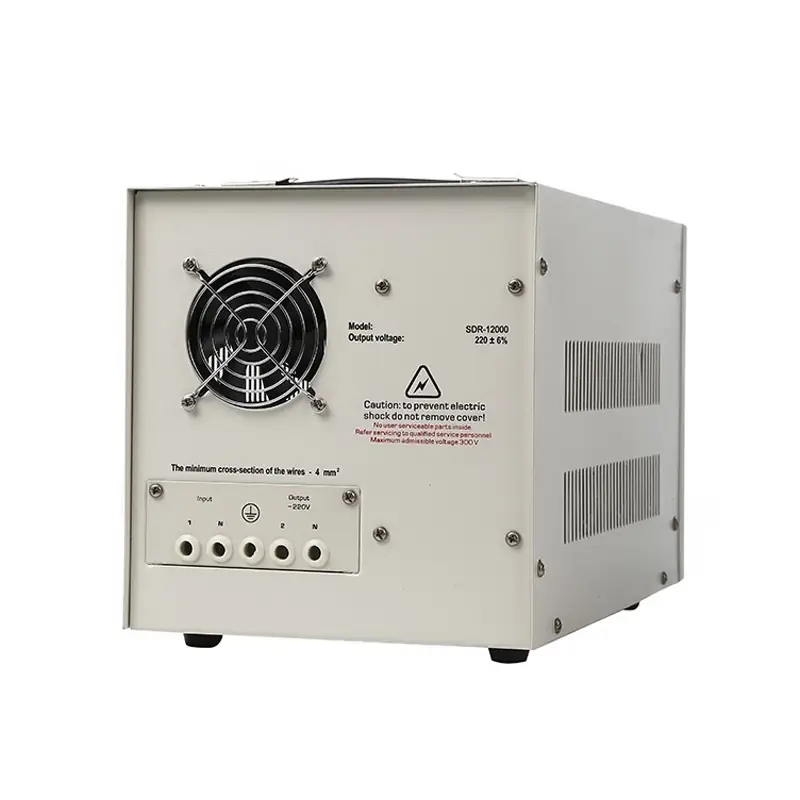

2KVA 3KVA 8KVA 10KVA 220VAC Relay type Single Phase AC Voltage Regulator Stabilizers
Short Description：
Place of origin: China
Phase: Single Phase
Current Type: AC
Input Voltage: 140V-260V/80-260V
Output Voltage: 220V±8%
Type: Relay Control
Certificate: ISO/CE/ROHS
OEM/ODM: Yes
Supply Ability: 10000 Piece/Pieces per Month
Packaging: Carton box package or as you requested
PRODUCT DETAILS
Product details：
SDR Series LED relay type full automatic AC voltage regulator adopts the international advanced technology and intelligent CPU centralized control technology.
It has over /lack voltage protection, delay protection, temperature and error protection and also voltage two-way indication. All panels are made with ABS materials, and all indicator gauges are digital display, it leaves you a brand-new impression.
These high-performance products are specialized for users of unstable voltage and precision electronic instruments and equipment.
Compared with other like products, ours have a higher ratio of performance to price.
Features：
1.Wide input voltage: AC 140~260V or customize 100-260V OR 100-270V OR 80-260VAC
2.High technology: programmed control computerized
3.Fashion design: LED display which can show all protection functions.
4.Quality insurance: Main spare parts made by ourselves, for example, transformer, PCB.
5.Perfect protection function: over/low voltage protection, over-heat/load protection, short circuit protection.
6.Option function: with voltage regulator and mains supply two kind output voltage choice function, in mains supply relatively stable season, the user can put voltage stabilizer in mains supply state, there is no power consumption, it is economic and convenient.
7.High efficiency: More than 95%
Technical Parameters
| TECHNOLOGY PARAMETER | |||||||
| Model | SDR- 500VA | SDR- 1000VA | SDR- 2000VA | SDR- 3000VA | SDR- 5000VA | SDR-10000VA | SDR-12000VA |
| Technology | Relay Control System+ Micro compute programed control+ control algorithm relay” Cross zero” | ||||||
| LED Display | Color | According to customer requirement, voltage stabilizer | |||||
| Info | Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection | ||||||
| Protection | Over Voltage | Output voltage ≥ 245v± 4 | |||||
| Over Loading | more than 120% | ||||||
| Over Temperature | 120° C± 10° C | ||||||
| Delay time | 3 second | ||||||
| Language | English/Russia/Chinese | ||||||
| Input Voltage | AC140-260V | ||||||
| Output Voltage | 220V± 8% Adjustable | ||||||
| Frequency | 50Hz/60Hz | ||||||
| Phase | Single Phase voltage stabilizer | ||||||
| Efficiency | ≥ 90% | ||||||
| Ambient Temperature | -15° C~45° C | ||||||
| Relative Humidity | < 95% | ||||||
| Waveform distortion | no additional wave form distortion | ||||||
| Insulating Resistance | Normally more than 2MΩ | ||||||
| Power | 350W | 700W | 1400W | 2400W | 3500W | 7000W | 9600W |
| Packing Size(mm) | 575× 275× 380 | 575× 275× 380 | 355× 305× 450 | 355× 305× 450 | 515× 420× 310 | 460× 265× 310 | 460× 265× 310 |
| Packing | 8 | 8 | 4 | 4 | 2 | 1 | 1 |
| G. M | 19.52 | 23.12 | 21.92 | 23.32 | 22.72 | 15.9 | 18.7 |
Applications:
Mainly used in Computer, Home, office equipment, Test equipment, Light system, Safe alarm system, Ray equipment, Medical equipment, Copy machine, Numerical control machine tools, Industrial automation equipment, Color and drying equipment, Hi-Fi equipment etc.
